Moving your /home partition to a new disk

2013/04/02 by Paulo Pereira

~/categories/Linux #Linux #Ubuntu #Ubuntu 12.10 #Quantal Quetzal

A couple of weeks ago my hard drive started to fail. The boot time started degrading and a scan to the /home partition would run in every boot. Also sometimes it would return i/o errors.

A look at the disk’s SMART data confirmed a number of bad sectors.

So I bought a new disk and migrated my /home partition.

The setup

I have a SSD drive with my root (/) partition and a HDD drive with my /home partition. I bought a new HDD drive to replace the old one and connected both at the same time for the migration process.

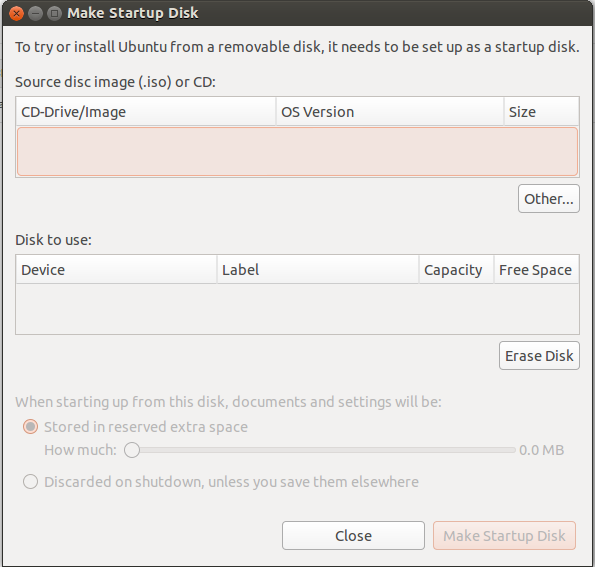

Startup Disk Creator

Booting into a live environment

I installed Ubuntu into a pen drive using the Startup Disk Creator. This allowed me to boot into a full Ubuntu environment without booting from my actual system.

Discover the UUIDs of the drives

Before starting the process we need to identify the drives by UUID.

sudo blkid
/dev/sda1: SEC_TYPE="msdos" UUID="2003-0A17" TYPE="vfat"
/dev/sda2: UUID="3060abca-18af-78ff-1234-1581aabbccdd" TYPE="ext4"
/dev/sdb1: UUID="1998abca-aaaf-847f-4567-14aaaa12ccdd" TYPE="swap"
/dev/sdb5: UUID="aaffea123-23aa-88fa-bbbb-601ffa135484" TYPE="ext4"
/dev/sdc5: LABEL="BACKUP" UUID="aa55abca-18af-78ff-1234-601ffa135484" TYPE="ext4"
/dev/sdd1: UUID="1998abca-d5f5-bbcb-17a9-14aaaa12ccdd" TYPE="swap"
/dev/sdd5: UUID="1998abca-aaaf-4780-87a7-a01ffa135484" TYPE="ext4"
/dev/sde1: UUID="ABaA-1ACA" TYPE="vfat"

Use Gparted to help you to identify the right device.

In my case the old drive is sdb5 and the new drive is sdd5.

Mounting the drives

Being in a live environment the drivers aren’t mounted, so we need to mount both the new and the old drives:

sudo mkdir /media/homeold
sudo mount /dev/sdb5 /media/homeold
sudo mkdir /media/homenew
sudo mount /dev/sdd5 /media/homenew

Check if the old and new drivers were mounted correctly:

ls /media/homeold
ls /media/homenew

Copy the /home partition to the new drive

Depending on the size of your /home partition this could take a while:

sudo rsync -axS --exclude='/*/.gvfs' --exclude='lost+found' /media/homeold/. /media/homenew/.

Automatically mount the /home partition on the new drive

Now that the /home partition is in the new drive, we need to change the fstab file to point to the new drive.

First we need to mount the system partition:

sudo mkdir /media/system
sudo mount /dev/sda2 /media/system

Then backup the fstab file:

sudo cp /media/system/etc/fstab /media/system/etc/fstab.$(date +%Y-%m-%d)

Finally change the fstab to reflect the new drive.

gksu gedit /media/system/etc/fstab
#UUID=aaffea123-23aa-88fa-bbbb-601ffa135484 /home      ext4   defaults     0    2
UUID=**1998abca-aaaf-4780-87a7-a01ffa135484** /home      ext4   defaults     0    2

Remove the old drive

Now you can disconnect your machine, remove the old drive and reboot normally.

Everything should work like before.
